Gravity Feed Based Optical Sorting Machine For Headless Parts

Gravity Chute

Introduction

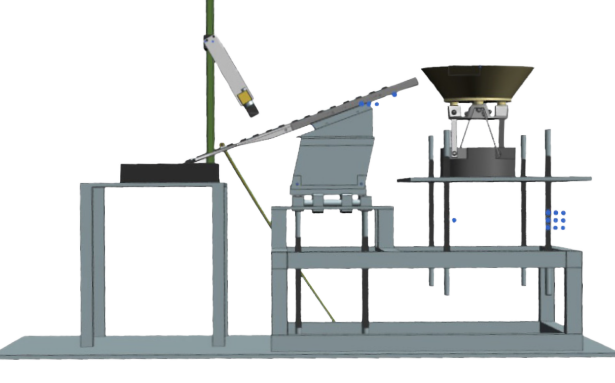

SensoVision systems’s gravity chute based sorting machine for quality assurance in manufacturing industry and machine vision inspection of studs and other headless fasteners. This machine has gravity driven feeding with a machine vision camera for optical sorting. Integrating this machine into manufacturing processes will help you in maximizing quality assurance. This machine will set new industry standards in vision inspection and quality assurance.

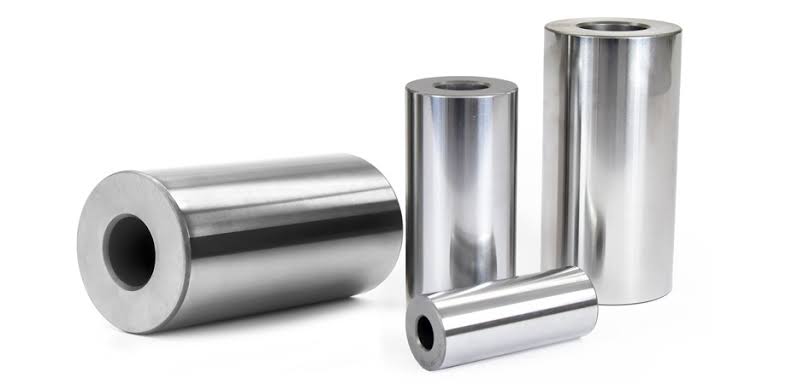

Coverage of Parts

```html

Specifications

  • Type : Gravity Feed
  • No. of Camera : 1-2
  • Speed (max) : Up to 300 parts/min
  • Accuracy : ± 50 microns
  • Machine Size : 35 × 35 × 74 in
  • Requirements : 230V, 4-7 bar

Key Features

  • Available for 2~4 cameras
  • Optional: 360° inspection internal & external feature or defects of nuts (optional devices)
  • Automatic data report such as daily & monthly productivity
  • Simple and user-friendly teaching and operating system

Items That Can Be Inspected

  • Continuous Thread Stud
  • Tap End Stud

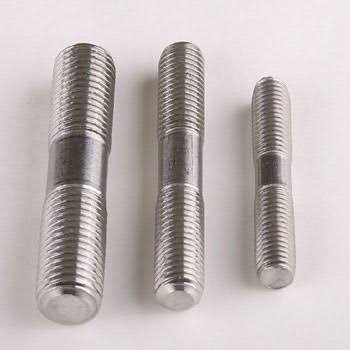

  • Double End Stud

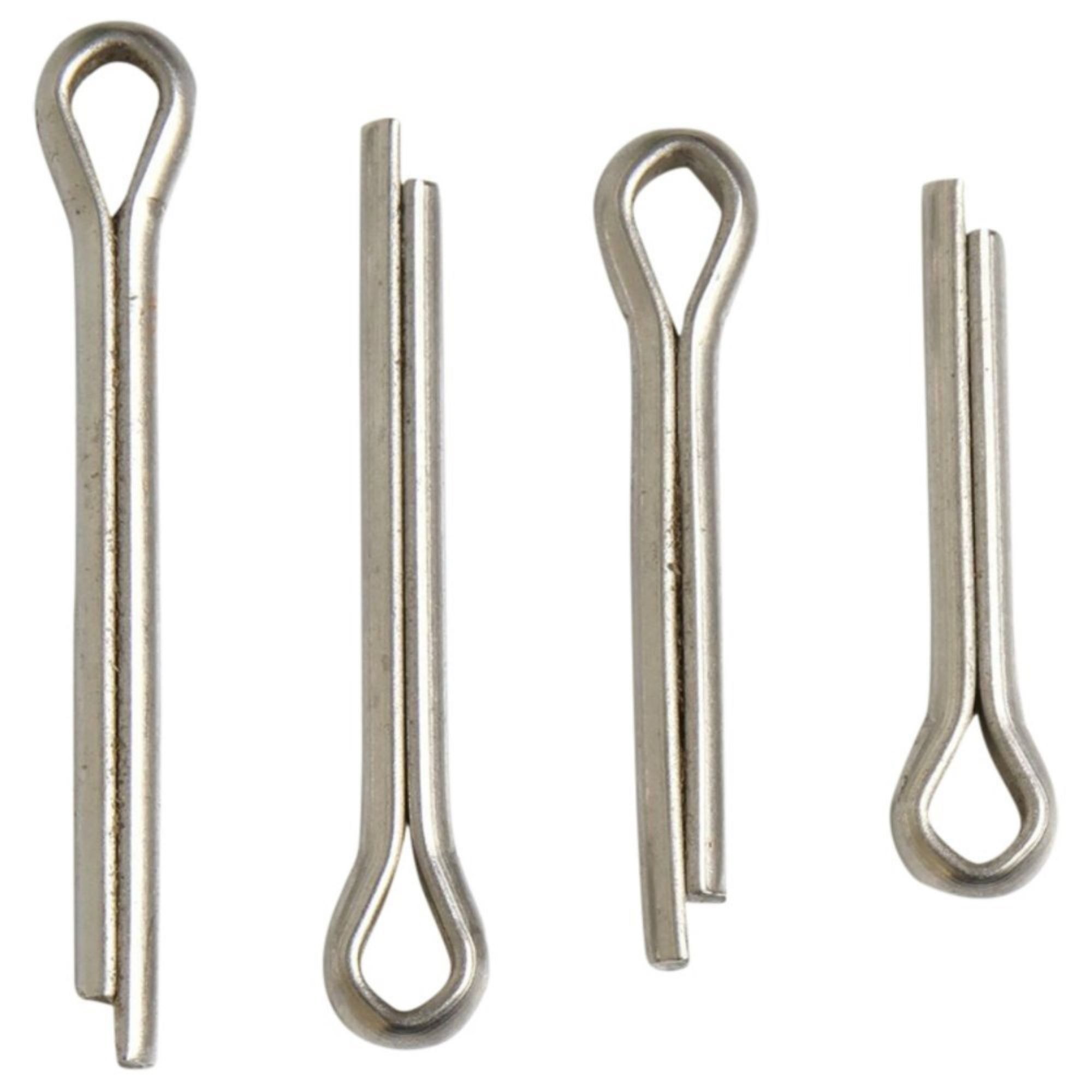

  • Cotter Pin

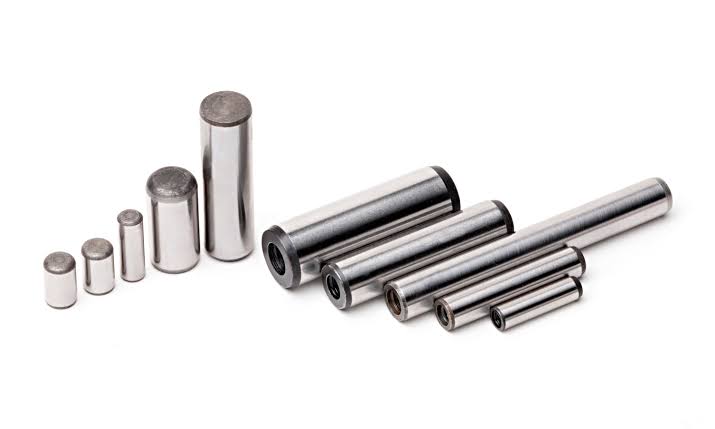

  • Dowel Pin

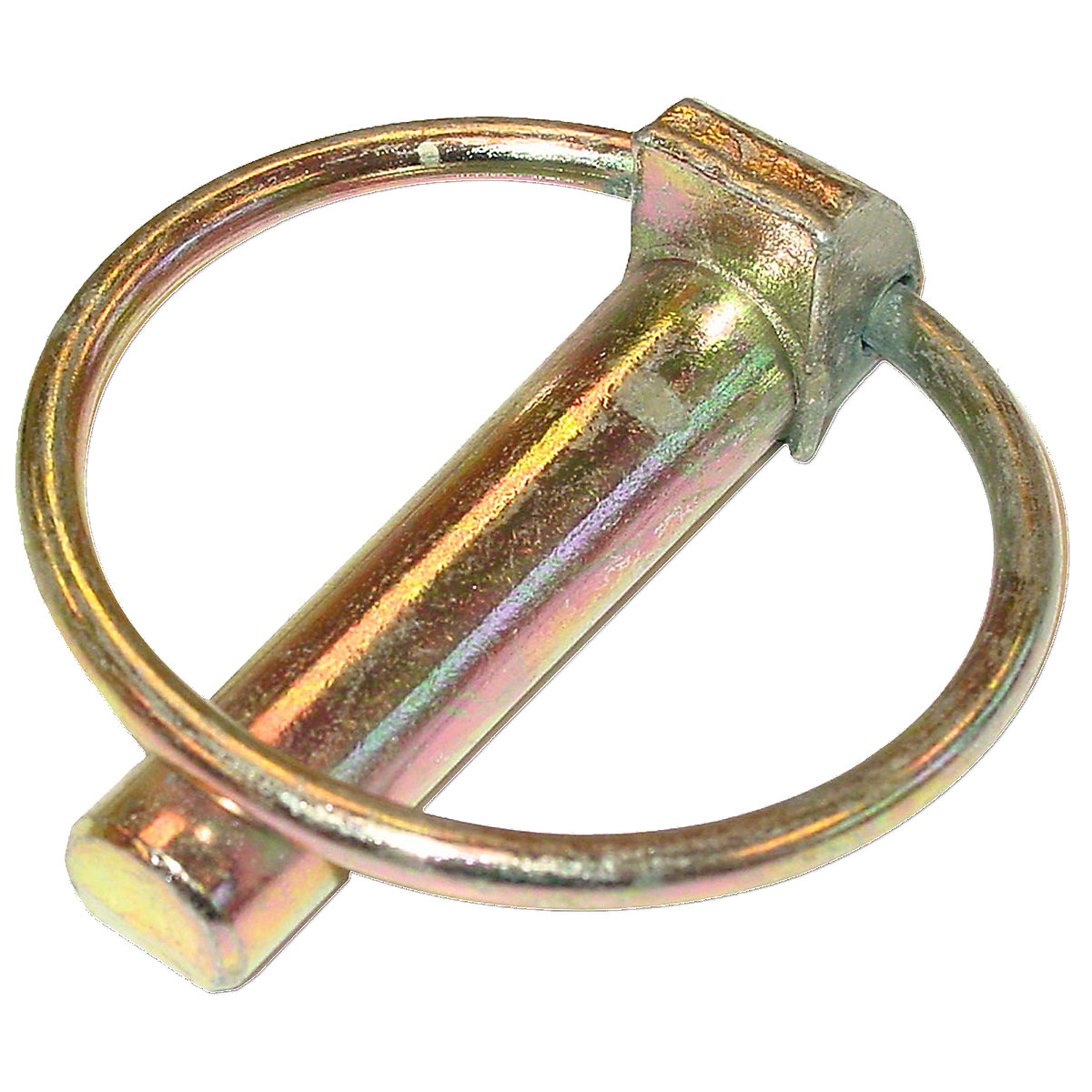

  • Hitch and Lynch Pin

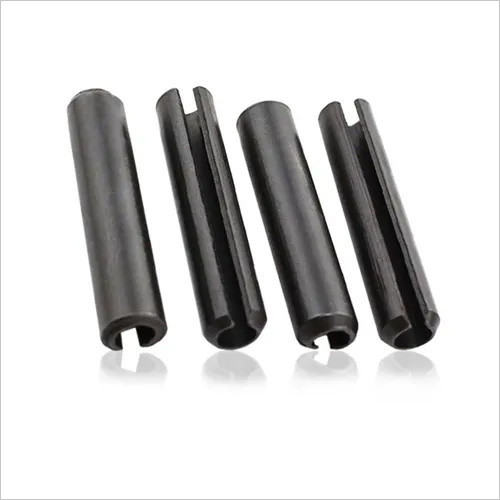

  • Spring Pin

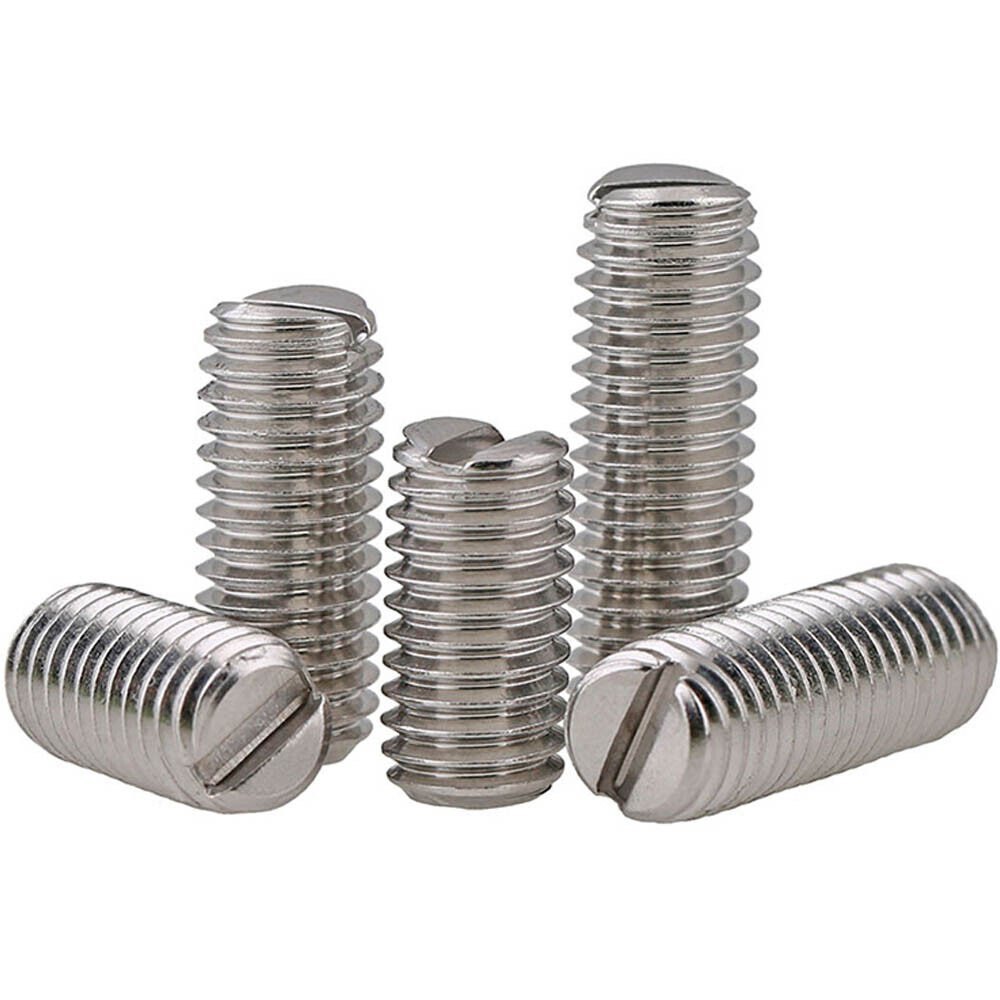

  • Slotted Grub Screw
  • Socket Grub Screw

Inspection Criteria

Dimensions

Total Length, Shank Length, Thread Length, Shank Diameter, Thread Angle, Major Diameter, Minor Diameter, Thread Pitch, Arc Radius, Middle Diameter

Surface Defects

Head crack, Plating, dent detection, surface deformities detection, absence/presence verification.

Upgrades Available

  • Packaging machine integration
  • 360-degree Inspection station
  • Laser based depth estimation station
  • Eddy current Integration
